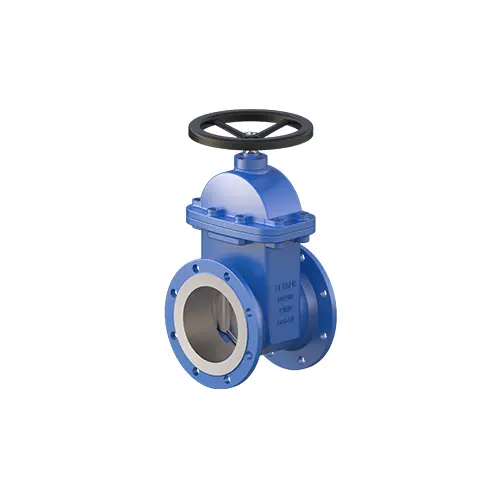

FZ-M Series Soft Seal Gate Valve
Description
Soft sealing gate valve is a kind of gate valve which can achieve good sealing effect by the compensation of elastic deformation caused by the integral sealing of valve plate. It is mainly applicable to tap water, light textile, electric power, ship, metallurgy and energy system and other industries.
Specification
-
Nominal diameter: DN50~DN1000 (2"~40")
-
Pressure rating: PN6~PN16 (class 150)
-
Working temperature: -40°C~80°C
-
Connection mode: Flange
Material
-
Valve body: Ductile iron, carbon steel, stainless steel
-
Valve core: Ductile iron lined with EPDM, stainless steel
-
Valve seat: Ductile iron, carbon steel, stainless steel
