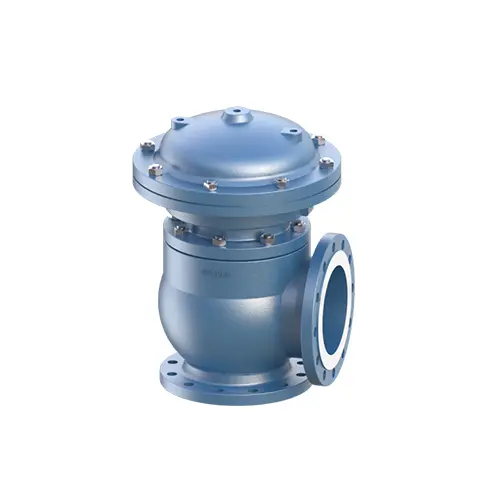

FW-M Series Mud Valve - Image 1

    FW-M Series Mud Valve

    Overview and application

    Mud discharge valve is an Angle of the truncated valve with hydraulic source or pneumatic source as actuator, usually in rows installed in the bottom of the sedimentation tank wall, to remove the sediment sand and dirt at the bottom.

    Technical parameters

    • Nominal diameter: DN100~DN400 (4″~16″)

    • Pressure grade: PN6~PN16 (Class150)

    • Working temperature: 0 ~ 80℃

    Materials

    • The valve body: GG25, GGG40, WCB

    • Valve cover: GG25, GGG40, WCB

    • Diaphragm: Nylon reinforced rubber

    • Diaphragm pressure plate: GGG40, aluminum bronze

    • Stem: stainless steel
