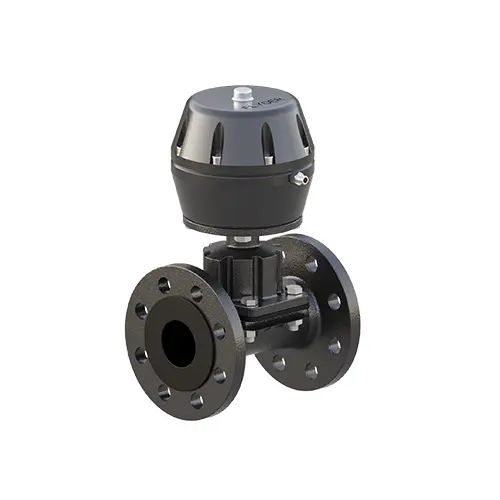

FG Series Diaphragm Valve - Image 1

    FG Series Diaphragm Valve

    Overview and application

    The valve body is lined with different corrosion resistant or abrasion resistant materials. Rubber and teflon are generally diaphragm materials. The lined diaphragm has strong corrosion resistance and it is applicable to the regulation of corrosive and viscid media and pulp media.

    Technical parameters

    • Nominal diameter: DN15~DN400 (1/2″~16″)

    • Pressure rating: PN6~PN16 (class 150)

    • Working temperature: -40℃~150℃

    • Connection mode: flange

    Materials

    • Valve body: Ductile iron, carbon steel

    • Diaphragm: EPDM, PFA, FEP

    • Valve seat: HR, BR, PFA, FEP
