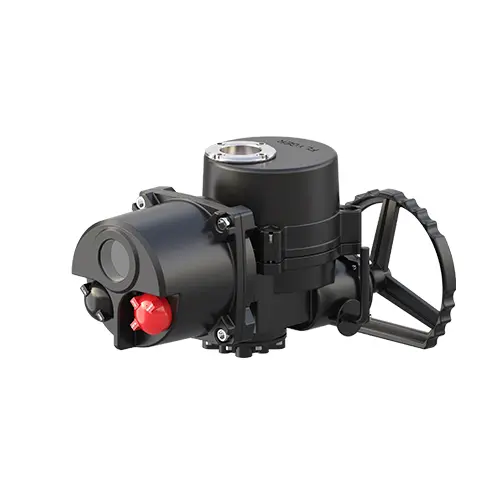

FE-R Series Electric Actuator
The electric actuator is divided into non-integrated, integrated, and intelligent integrated types. It is widely used in industries such as petroleum, chemical, metallurgy, pharmaceuticals, and electric power for various production processes.
-
Connection: Valve mounting interface complies with ISO5211 standard.
-
Self-locking function: Equipped with a double worm gear mechanism that provides self-locking capability, preventing backdrive.
-
Motor: Specially designed responsive motor with built-in thermal protection components, ensuring reliable insulation.
-
Protection functions: Includes phase loss, phase reversal, overheat, overload protection, and ESD emergency operation.
-
Position transmitter: Uses encoder technology for precise angular positioning and high control accuracy.
- Supply range: FE-R02~R48, output torque range 60–130000 N·m
- Working voltage (optional):
- Single-phase: AC220V/110V ±10%, 50/60Hz
- Three-phase: AC380V/415V/440V ±10%, 50/60Hz
- Control signal: DC0–10V, DC4–20mA, or ON-OFF
- Analog signal output: 4–20mA (standard) or 0–10V
