FE-B Series Electric Actuator - Image 1

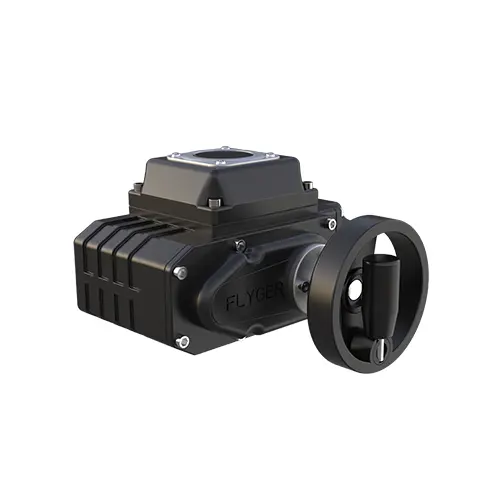

    FE-B Series Electric Actuator

    Overview and application

    With outstanding features as light weight and small volume, it is widely applied in the production processes in light industry, pharmaceutical industry, food industry, water treatment, environmental protection, fire fighting and electric power industry.

    Product features

    • Connection: Installation and connection with valves comply with ISO 5211 standard.

    • Precision: Integrated design of worm gear output shaft, high drive precision; special copper alloy for forging, high strength and good abrasion resistance.

    • Safety: Passed AC1500V voltage withstand test, grade F insulation motor, high safety.

    • Intelligence: The intelligent control module is highly integrated in the body of electric device and no external locator is required; intelligent setting.

    • Use: Refueling and spot inspection not required; water proof, rust proof, and installation at an arbitrary angle.

    Technical parameters

    • Scope of supply: FE-B02~B16

    • Output torque: 50~6000N.m

    • Working voltage: Single-phase AC220V/110V 50/60HZ Three-phase AC380 50/60HZ

    • Control signal: DC4-20mA, ON-OFF

    • Signal output: 4-20mA, ON-OFF

    • Regulation precision: 0.3~5% (adjustable) Dead zone: 0.3~5% (adjustable)

    • Ambient temperature: -20~60℃

    • IP grade: IP67/EN60529

    • Product type: Intelligent, proportional, switch
