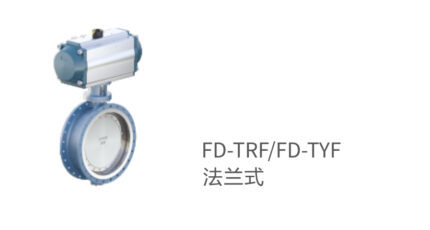

FD-F Series Three-lever Type Butterfly Valve
With flexible operation and good sealing performance, the three-lever type butterfly valve is applicable to media including air and gases in metallurgical industry, chemical industry, electric power industry and air separation industry.
-
The valve plate moves parallel to the valve seat to achieve frictionless movement;
-
Small flow resistance, small pressure loss and low leakage rate when the valve is fully open;
-
Special connecting rod structure design, sealing surface force uniform;
-
Master connecting rod and auxiliary connecting rod are almost equally master, and the connecting rod mechanism will not be stuck under high temperature conditions.
-
Nominal diameter: DN300~DN3000 (12"~120")
-
Pressure rating: PN6~PN16 (class 150)
-
Working temperature: -20°C~500°C
-
Connection mode: Flange
-
Valve body: Ductile iron, carbon steel, stainless steel
-
Valve plate: Ductile iron, carbon steel, stainless steel
-
Valve seat: Soft seal, hard alloy
