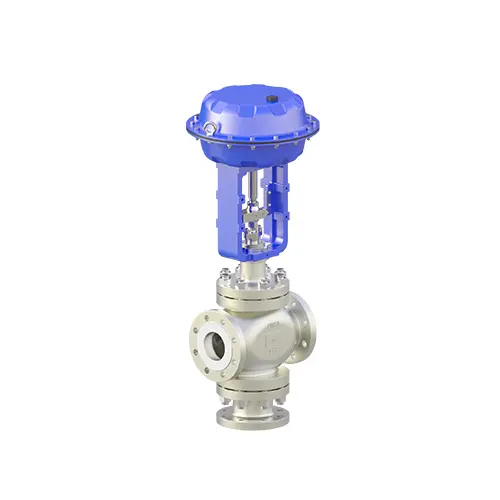

FC-T Series Three-Way Control Valve
Overview and application
The converging/ dividing three-way control valve applies sleeve and pressure unbalanced valve plug. The standard converging/ dividing three-way control valve is designed in unbalanced dual-seat structure. It can also be designed in special cage structure that reduces noise and prevents cavitation according to working conditions. It is widely applied for media flow or pressure regulation and control (flow converging or dividing) in petroleum industry, chemical industry, metallurgical industry, pharmaceutical industry and electric power industry.
Technical parameters
Nominal diameter: DN25~DN400 (1″~16″)
Pressure rating: PN16~PN63 (class 150~600)
Leakage class: ASME B16.104V (metal valve seat)
Bonnet: Standard: -30~260℃
Radiation type: -45~530℃
Bellows type: -60~530℃
Connection: Flange type, welded type
Materials
Valve body: Carbon steel, stainless steel, alloy steel
Valve trims: Stainless steel, STL hardfacing for valve plug and valve seat, ion nitriding treatment
Pneumatic diaphragm actuator, pneumatic piston actuator, electric actuator, electrohydraulic actuator
