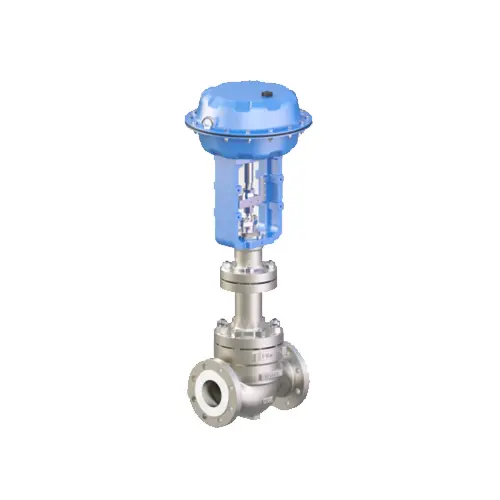

FC-B Series Bellows Control Valve
Overview and application
The valve applies sleeve and pressure balanced valve plug to ensure good sealing performance and allow large pressure difference. With good stability, compact structure and the sealing upper bonnet and bellows component on bellows, it can ensure no leakage of media. It is widely applied in working conditions involving poisonous and corrosive media that has high requirements on sealing in petroleum industry, chemical industry, metallurgical industry, pharmaceutical industry and electric power industry.
Technical parameters
Nominal diameter: DN20~DN400 (3/4″~16″)
Pressure rating: PN16~PN63 (class 150~600)
Leakage class: ASME B16.104V (metal valve seat)
Bonnet: Bellows type: -60~530℃
Connection: Flange type, welded type
Materials
Valve body: Carbon steel, stainless steel, alloy steel
Valve internals: Stainless steel, STL hardfacing for valve plug and valve seat, ion nitriding treatment
Actuator: Pneumatic diaphragm actuator, pneumatic piston actuator, electric actuator, electrohydraulic actuator
