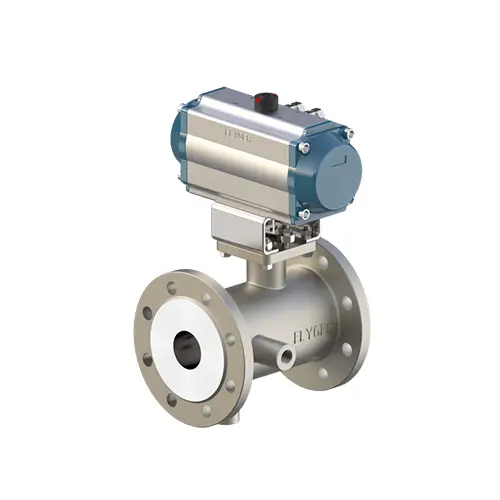

FB-J Series Insulated Ball Valve
Overview and application
Insulated ball valve has good heat preservation and cold preservation characteristics, most of them are conveying high viscosity medium that will solidify at room temperature; Widely used in chemical, petroleum, pharmaceutical, metallurgy and other industries system pipelines, such as heavy oil, glue and other easy to solidify working conditions.
Technical parameters
Nominal diameter: DN15~DN200 (3/4″~8″)
Pressure rating: PN16~PN25 (class 150~300)
Working temperature: -40℃~500℃
Connection: Flange type
Materials
Valve body: Carbon steel, stainless steel
Valve plate: stainless steel
Valve seat: R-PTFE, PEEK, metal seal
